One parapet. A 200 mm disagreement.
ArchX traced the conflicting parapet height across the plan, elevation and section, then named the drawing references to coordinate before the next issue.
Inside the original output

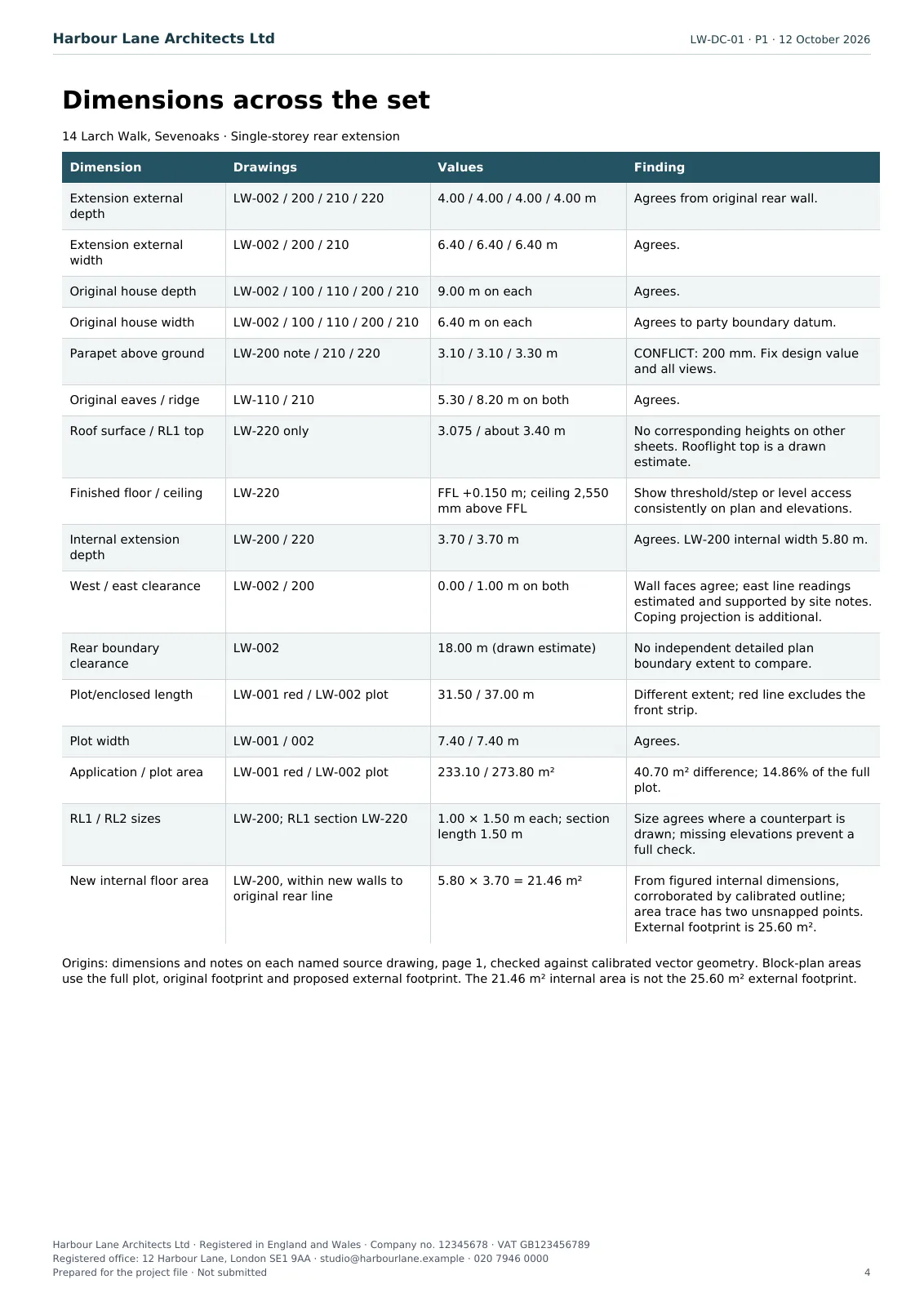

| View | Drawing reference | Height above ground |
|---|---|---|
| Plan note | LW-200 | 3.10 m |
| Elevation | LW-210 | 3.10 m |
| Section | LW-220 | 3.30 m |
The original review records a 200 mm conflict and identifies every affected drawing. The designer still chooses the correct height.
What you can do with it
Set one design height, then coordinate LW-200, LW-210 and LW-220 before the next issue. The same review also identifies the omitted W10 elevation and rooflight conflicts.
The deliverable
Open what ArchX produced.
Original files from this run. No sign-up.
The review identifies corrections; it does not issue or approve the drawing set.
The starting point
What ArchX received.
Read the original request and file list
The request
Tell me whether this could go ahead as permitted development or needs planning permission, condition by condition, with the measured value and the limit. Check it against Sevenoaks District Council’s Residential Extensions SPD … Draw the 45-degree check on the plan if you can. Then: check the drawing set, the validation checklist and a drawing register. Then: the heritage statement and the floor areas.
