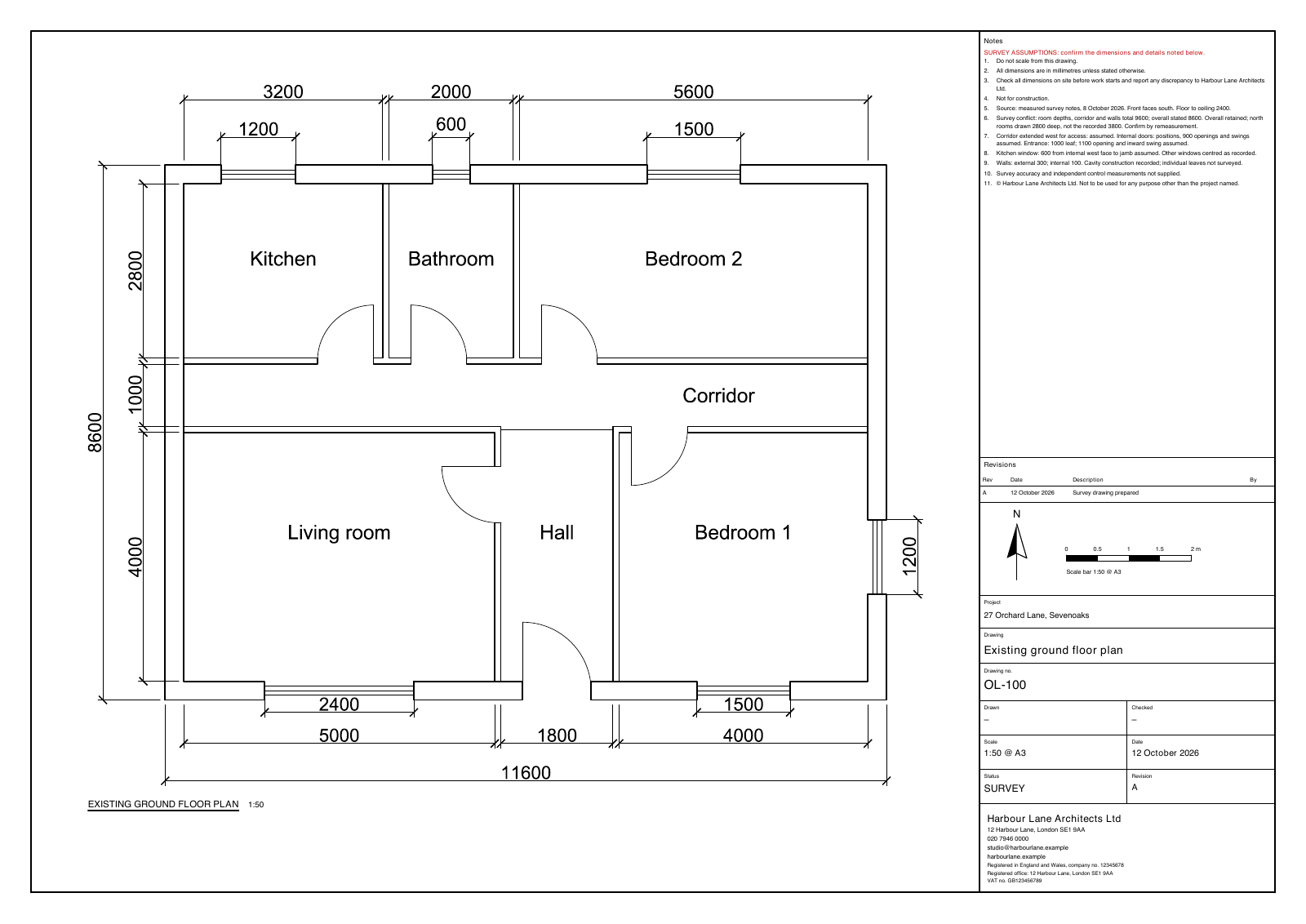

An editable plan, with a one-metre survey conflict flagged.
ArchX drew the measured notes as a dimensioned DXF and A3 PDF, flagged the conflicting depths and marked the exact assumption to check back on site.
Inside the original output
| Survey check | Recorded value | Treatment in OL-100 |
|---|---|---|
| Overall depth | 8,600 mm | Retained |
| Rooms + corridor + walls | 9,600 mm | 1,000 mm conflict flagged |
| North-room depth | 3,800 mm | Drawn at 2,800 mm; remeasure |
This is a reconstruction from measured notes. The 2,800 mm room depth is a stated drawing assumption, not a corrected site measurement.
What you can do with it
Open the dimensioned DXF for editing and take the flagged north-room depth back to site. The next survey check is identified on the same sheet as the plan.
The deliverable
Open what ArchX produced.
Original files from this run. No sign-up.
This run started from measured notes, not a PDF conversion. Unverified dimensions and assumed openings remain identified on the drawing.
The starting point
What ArchX received.
Read the original request and file list
The request
From the measured survey notes in Survey/, please draw the existing ground floor plan of 27 Orchard Lane as a DXF in millimetres – our title block with drawing number OL-100, status SURVEY, scale 1:50 at A3 – with room names, dimensions, a scale bar and a north point, plus a PDF of the sheet.
